Mid-West Cryogenic Level Gauge - DP Gauge 115, 116 | |
| |
MidWest Instrument Cryogenic Level Gauge |
| |
| This cryogenic level gauge is a differential pressure gauge for measuring the liquid level in fixed tanks or cryogenic road tankers. It is a dry gauge with no internal liquid filling which eliminatescostly cleanup from fill leaking and fouling the tank and system. Also there is no gauge damage/accuracy loss caused by liquid fill expansion/contraction when exposed to temperature shocks in cryogenic applications.
The gauge has an "Engineering Plastic" gauge front and optional stainless steel body bolts provide superior corrosion resistance in "over the road" trailers (tank cars), outdoor or salt air environments.
|

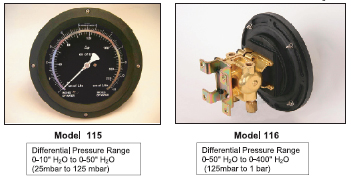

Mid-West Instrument Model 115, 116 Differential Pressure Gauge for Cryogenic Liquified/Gas Applications | |
|
| UPC code: | M35 |
|
| Manufactured by: | Mid-West Instrument |
|
| Made in USA |
| Payment Methods |
| Cheque or Direct Bank / Telegraphic Transfer |
|
|
| Ref | |
| Description | Mid-West Cryogenic Level Gauge - DP Gauge 115, 116 |
|
|
|
|
