Mid-West Instrument - DP Transmitter - Piston Type Differential Pressure 121 | |
| |
Mid-West Instrument Differential Pressure Transmitter or Switch |
| |
| A low cost differential pressure indicating switch or dp transmitter for use in measuring the pressure drop across filters, strainers, separators, valves, pumps, chillers etc., and for local flow indication and control.
|
| Features:
-
Simple, rugged, compact design.
-
Five Year Limited Warranty. (One Year Limited Warranty on Transmitter)
|
| | Specifications:
-
½ inch NPT conduit connection with heavy duty switch/transmitter cover and terminal strip
-
Choice of one or two magnetically actuated hermetically sealed reed switches to provide high and low limit alarm or control or 4-20mA transmitter.
-
Working pressure 6000 P.S.I.G. (400 bar) Models 121-A and 121-S.
-
Over-range protection to maximum pressure.
-
Aluminum or 316 stainless steel gauge body with 316 stainless steel internals.
-
Weather resistant construction standard
-
Gauge accuracy ± 2% full scale (ascending)*. Transmitter accuracy ± 2% full scale (from 20% to 100% of scale,ascending)
-
Shatter resistant lens.
-

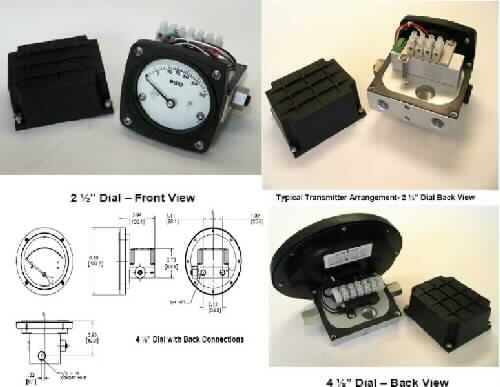

2 ½" and 4 ½" plastic dial assemblies.
|
|
| UPC code: | M35 |
|
| Manufactured by: | Mid-West Instrument |
|
| Made in USA |
